145 r 13 Wheel & Tyre Assembly, 130mm PCD

Contact us on 0117 251 0109 or info@hktrailers.co.uk

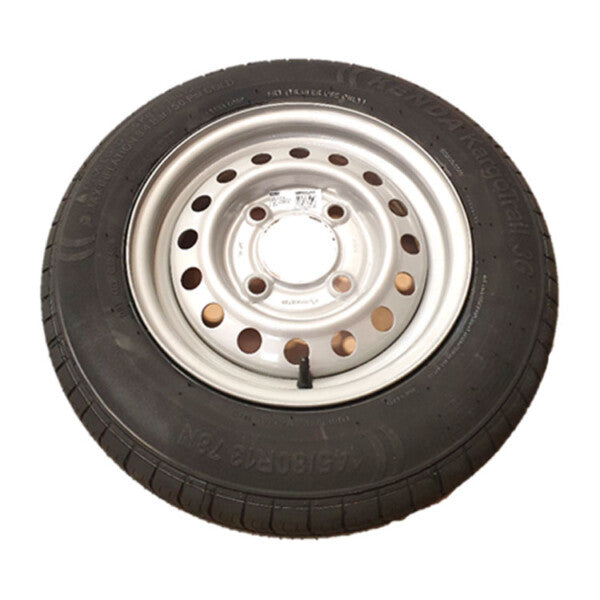

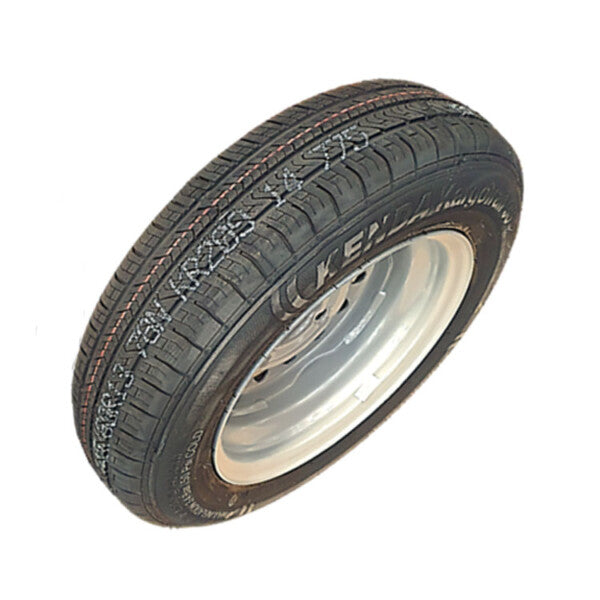

145 80 r 13 wheel and tyre assembly on 4 stud 130mm PCD

145 80 r 13 wheel and tyre assembly on 4 stud 130mm PCD

Roll over image to zoom in Click on image to zoom

145 80 r 13 wheel and tyre assembly on 4 stud 130mm PCD

145 80 r 13 wheel and tyre assembly on 4 stud 130mm PCD

As fitted to the Erde 193 & 213 Trailers
Please check tyre pressure before use
Construction type: Radial
Dimension: 145/80R13
Load index: 78
Speed index: N
Max. load: 425
Max. speed: 140
Overall diameter: 562mm
Static loaded radius: 255mm
Section width: 145mm
Max pressure: 3.4 bar
Tubeless: Yes
Rim horn: J
Rim width: 4 inch
Rim diameter: 13 inch
Reinforced: Yes
Fuel efficiency: C
Wet grip: E
External rolling noise: 69 (dB)

Rim

PCD: 130
Rim: T13 x 4.5J
Offset: 20
Centre bore: 85
Stud holes: R14 seat 18.5 dia.
Seat / Fixing: R14 Spherical
Colour: Silver
